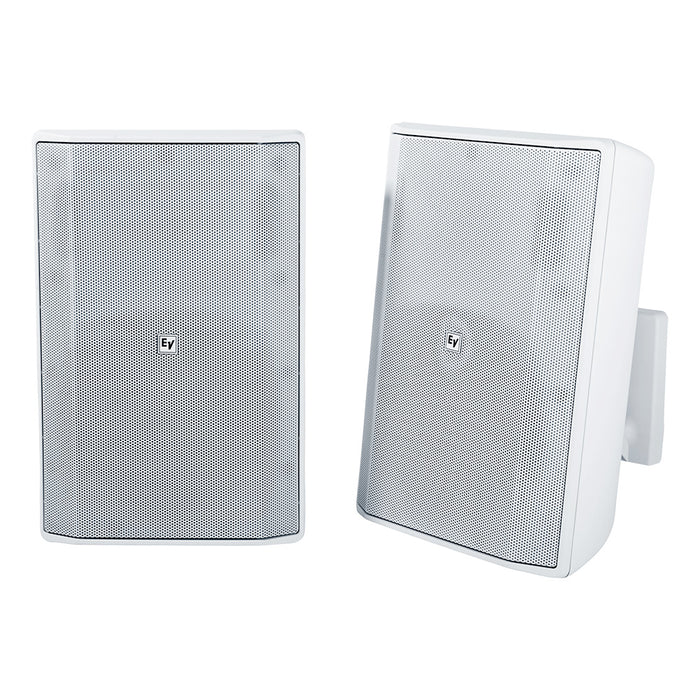

This pair of Electro-Voice EVID-S8.2TW Surface Mount Speakers feature an innovative mount system that is included for quick, simple, and reliable installations. Without compromising performance, the Electro-Voice EVID-S8.2TW has been carefully engineered for outdoor environments (IP54). The EVID-S8.2T from Electro-Voice is a high-performance, two-way, full-range, 8" (203 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance.
Designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease of installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S8.2T is the perfect solution for a wide variety of surface mount applications.
Product details:
- Includes two speakers
- Carefully engineered to resist outdoor environments
- Can be easily painted to match the décor
- Color: White
- Height 15.35" (390mm)
- Width 9.84" (250mm)
- Depth 8.78" (223mm)
- Weight Net 12.79lbs (5.8kg)
The EVID-S8.2T includes the unique and innovative mounting system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.
The EVID-S8.2T utilizes a 60 W transformer, that offers a selection of 7.5 W (70 V only), 15 W, 30 W, or 60 W delivered to the speaker system using either 70 V or 100 V lines, or 8 Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.
The EVID-S8.2T has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.
All EVID-S models are available in black or white and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.
The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions and to be used in combination with other EVID ceiling and in-wall speakers.
| Frequency Range (-10 dB) |
50 Hz – 20 kkHz |
| Weatherized |
Yes |
| Minimum Impedance |
6Ω |
|
| HF Transducer |
1 inch (25 mm) |
| Frequency Response (-3 dB)¹ |
70 Hz – 20 kHz |
| Max. SPL/1m (calc)² |
110dB |
| Coverage (Nominal -6 dB) H |
90° |
| Coverage (Nominal -6 dB) V |
90° |
| LF Transducer |
8 inch (203 mm) |
| Power Rating |
360W |
| Connector Type |
Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm) |
| Available Color |
Black or White |
| Height |
15.35" (390mm) |
| Recommended High-Pass Frequency |
50Hz |
| Width |
9.84" (250mm) |
| Depth |
8.78" (223mm) |
| Weight Net |
12.79lbs (5.8kg) |
| Shipping Weight |
32.63lbs (14.8kg) |
| Regulatory Approvals |
IP54 |
| Transformer |
70V/100V (60W) |
| Environmental Specs |
IP54 (per IEC-60529) |
| Nominal Impedance |
8Ω |
| Power Handling (Continuous / Peak) |
90W/360W |
