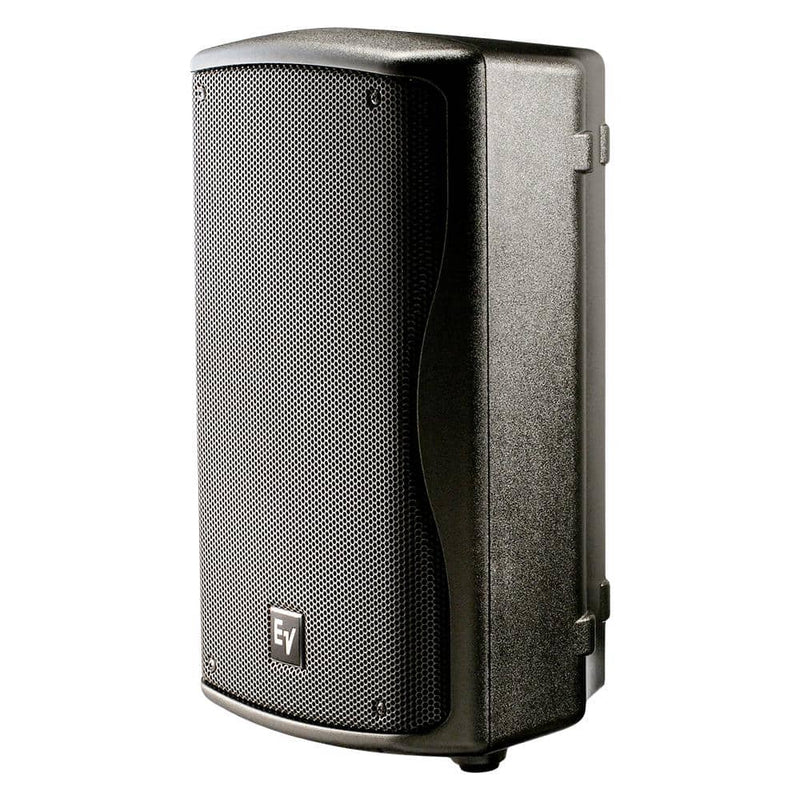

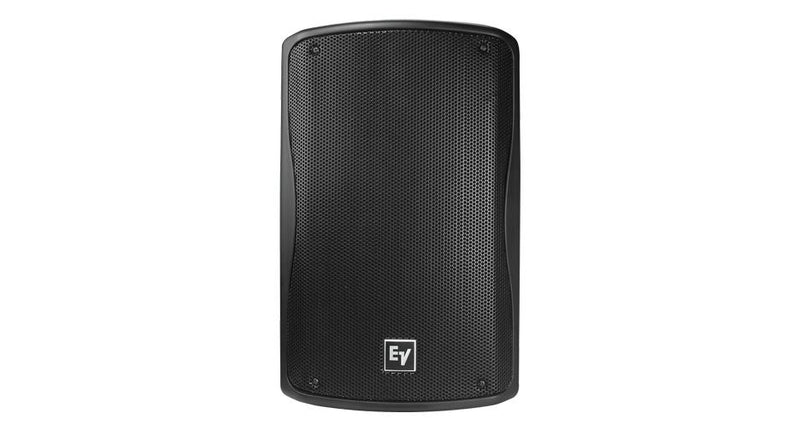

Electro-Voice ZX1 8" 2 Way Passive Loudspeaker

SKU ZX1-90
Save $153.00 Save $153.00
Original price $602.00
Original price $602.00 - Original price $602.00
Original price $602.00
Current price $449.00
$449.00 - $449.00
Current price $449.00
Verifying your connection...

Your connection needs to be verified before you can proceed

Need more info before you place your order?

Questions about equipment compatibility or shipping times? Contact us, we can help!

Request a quote

The Electro-Voice ZX1 8" 2 Way Passive Loudspeaker is engineered with high-tech materials for maximum rigidity and acoustic performance. The lightweight and durable enclosure, along with a weatherized treated cone, ensures smooth low-frequency sound and exceptional reliability. If you need help finding compatible amplifiers for these speakers, contact AV Now today.

The Electro-Voice ZX1 8" 2 ‘Way Passive Loudspeaker, high-tech, lightweight and extremely durable. The enclosure has been engineered to provide maximum rigidity and acoustic performance.

Product highlights:

  • View: Electro-Voice ZX1 Brochure
  • Compact, lightweight, yet high performance
  • 8" 2 Way Passive Full Range Composite Loudspeaker
  • Rotatable 90º x 50º horn for flexible coverage
  • High-impact enclosure
  • ZX1perfect for portable music, AV rental and mobile audio applications

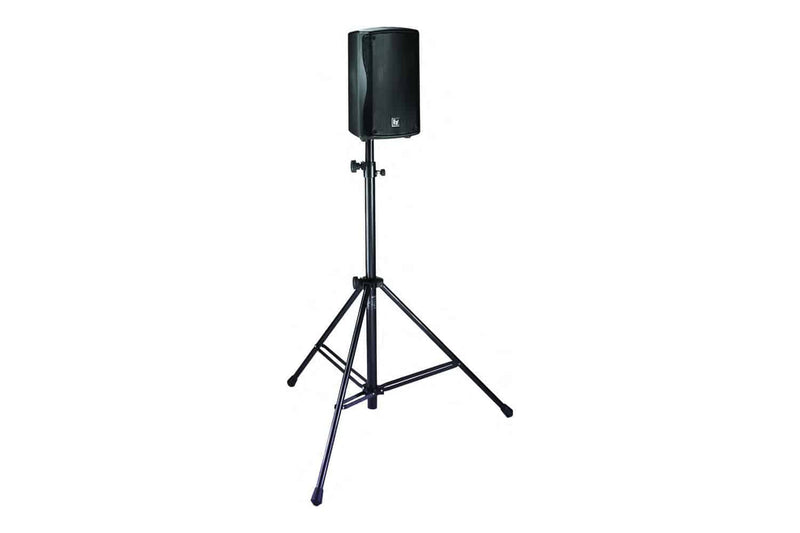

  • Stand sold separately

Product details:

  • EV8L high-performance 8" woofer
  • Exclusive port design for extended LF response
  • 200W cont., 400W program power handling,
  • Integrated overload protection
  • DH2005 true compression driver
  • Rotatable 90 x 50 HF horn
  • Integrated monitor angle
  • Integrated pole-mount adapter and handle
  • 4 metric inserts for additional mounting options
  • 2 Neutik NL4 connectors
  • Available in black and white
  • Warranty: 5 years

Specs

Specifications

Freq. Response¹ (-3 dB) 60 Hz - 20 kHz
Freq. Range¹ (-10 dB) 48 Hz - 20 kHz
Rec. Hipass Frequency 40 Hz

Axial Sensitivity¹ 92 dB (1W/1m)
Max Calculated SPL 121 dB
Horizontal Coverage 100°
Vertical Coverage 100°
Rated System Power 200W Cont. 2, 400W Prog., 800W Peak
LF Transducer EV8L, 8 in (203mm) Driver
HF Transducer DH2005, 1 in. (25.4mm) Exit Compression Driver
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ohms
Minimum Impedance 6 Ohms
Connectors Neutrik Speakon NL4
Enclosure Material High Impact Polymer
Grille Polyester Powder Coated, 18GA Galvanized Steel
Dim (H x W x D) 457mm x 282mm x 264mm (17.98" x 11.12" x 10.38")
Net Weight 8.4 kg (18.5 lbs)
Shipping Weight 10.2 kg (22.5 lbs)
