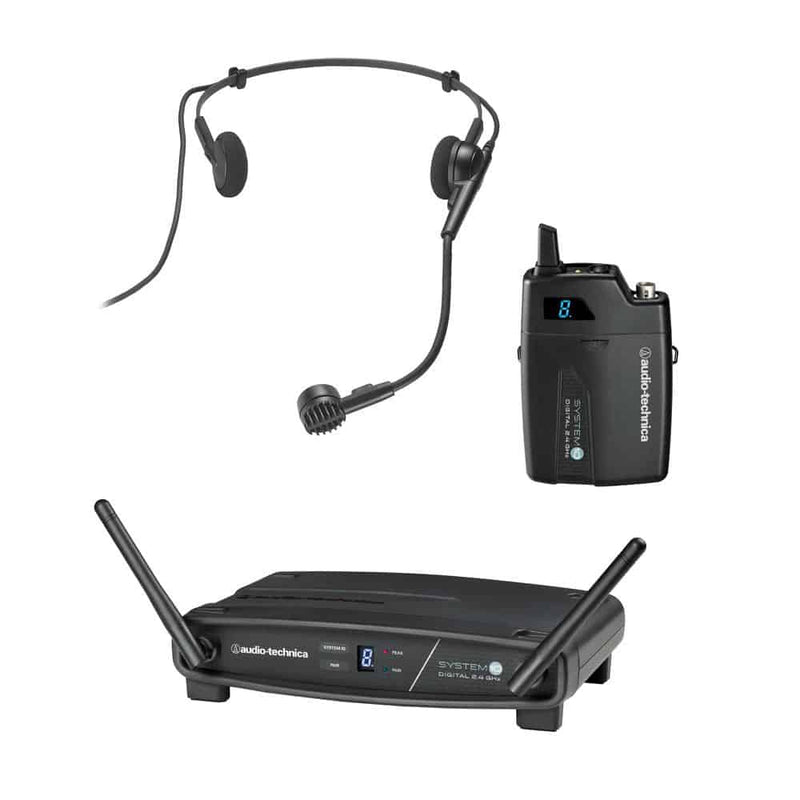

Audio-Technica System 10 Digital Wireless Microphone system with Pro-8HEcW aerobics headset microphone. System 10 offers extremely easy operation and instantaneous channel selection. Up to eight systems may be used together at the same time without any frequency coordination problems or group selection issues.
Audio-Technica’s System 10 with the Pro-8HEcW aerobics headset is a great entry into the world of digital wireless mic systems. Why use a digital mic system? Well, these systems broadcast up in the 2.4 GHz range, which is far from TV interference, which is what typically plagues standard UHF wireless mic systems.
- Suggested Use 7 classes per week/1 class per day
Included:
System 10 offers extremely easy operation and instantaneous channel selection. Up to eight systems may be used together at the same time without any frequency coordination problems or group selection issues. This means that you could have these in multiple studios in a fitness facility without having to worry about microphones interfering with each other.
This set is the Aerobics version, which features the ever-popular Pro-8HEcW over-the-head headset microphone. Audio-Technica System 10 Digital Wireless Mic system with Pro-8HEcW aerobics headset microphone. System 10 offers extremely easy operation and instantaneous channel selection. Up to eight systems may be used together at the same time without any frequency coordination problems or group selection issues.
Product highlights:
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- 2.4 GHz range – completely free from TV interference
- Three levels of diversity assurance: frequency, time, & space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and set-up
- State-of-the-art digital receiver for reliable performance
- Balanced XLR and unbalanced 1/4” output jacks with level control

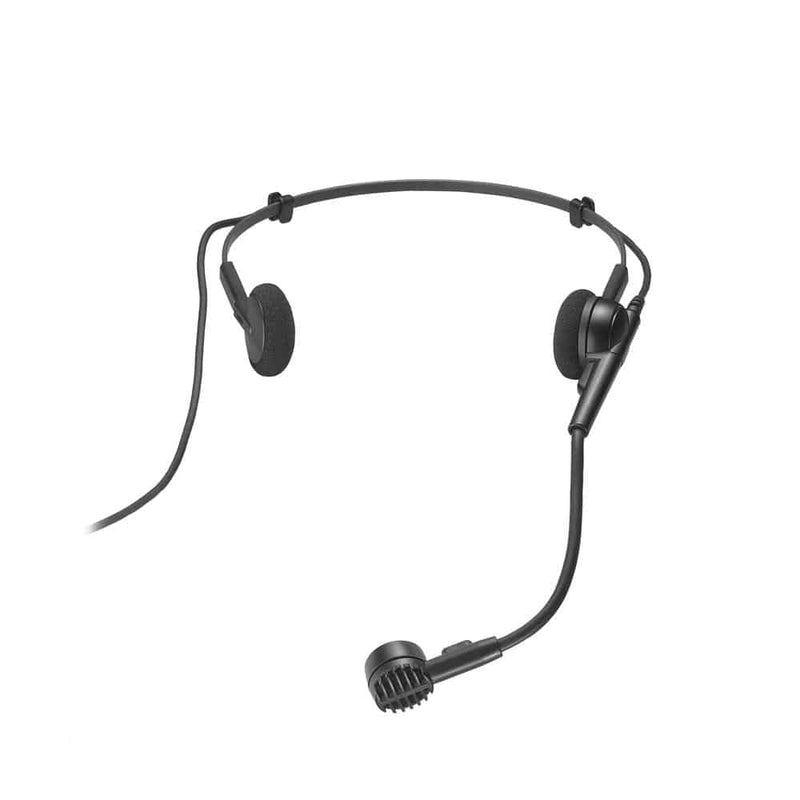

- Aerobics-styled headset microphone
- Suggested Use 7 classes per week/1 class per day

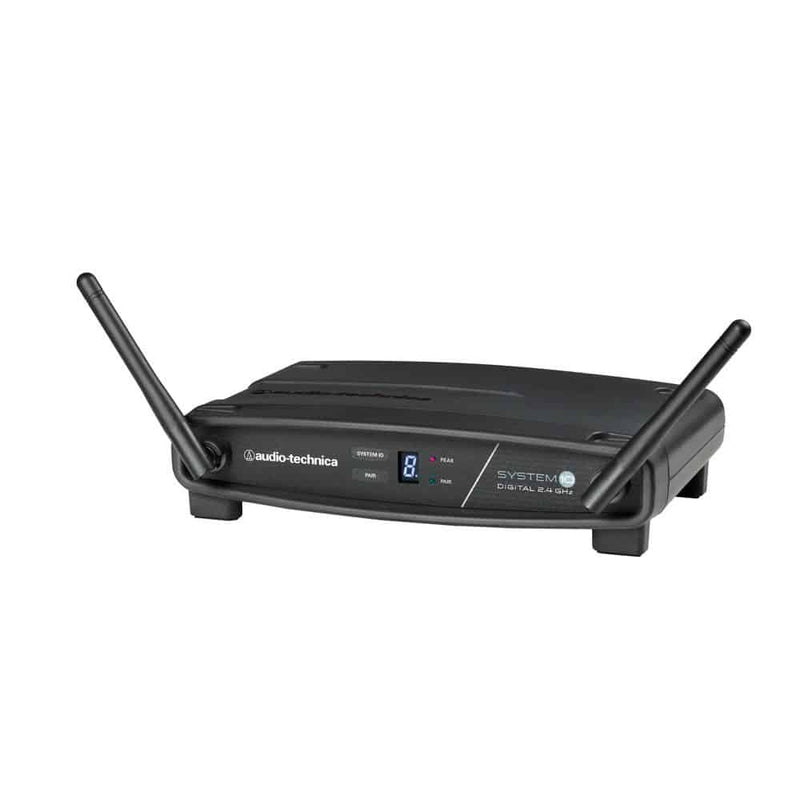

Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV
1/4 " (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A
(center positive) switched mode external
power supply
Dimensions 190.0 mm (7.48") W x 46.2 mm (1.82") H x
128.5 mm (5.06") D
Net Weight 290 grams (10.2 oz)
Accessory Included Power supply

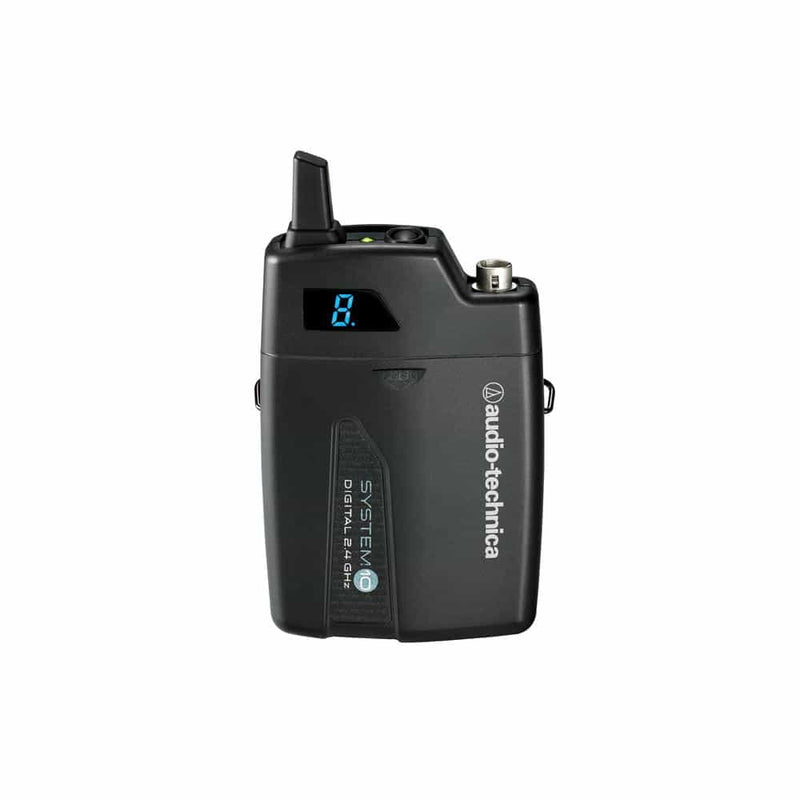

UnIPAk® Transmitter
RF Output Power 10 mW
Spurious Emissions Following federal and national regulations
Input Connection Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x
24.9 mm (0.98") D
Net Weight (without batteries) 100 grams (3.5 oz)
Hand Held Transmitter
RF Output Power 10 mW
Spurious Emissions Following federal and national regulations
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 254.8 mm (10.03") long,
50.0 mm (1.97") diameter
Net Weight (without batteries) 280 grams (9.9 oz)
Accessory Included AT8456a Quiet-Flex™ stand clam
